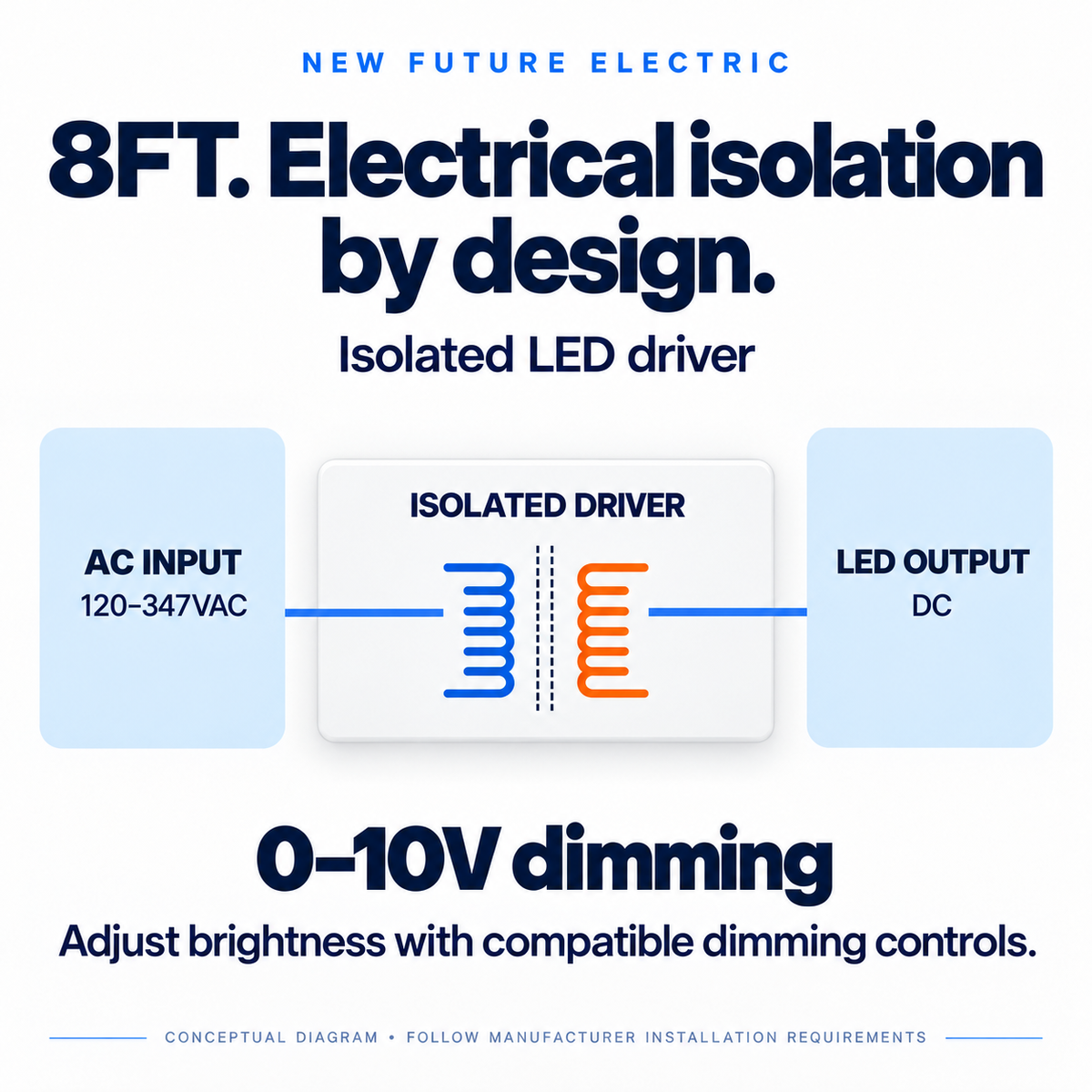

  • 8FT isolated LED driver conceptual diagram and 0–10V dimming
  • 8FT plug-and-play linking illustration and optional microwave sensor sold separately
1 11

New Future Electric

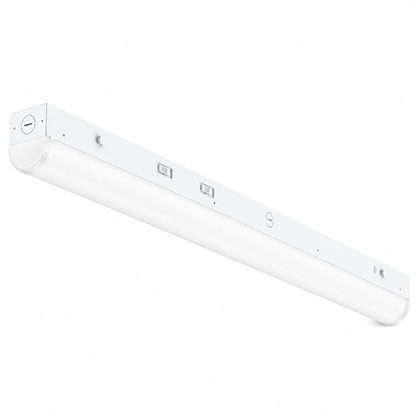

4FT / 8FT Linkable LED Linear Strip Light | Wattage & 5CCT Selectable | 120–347V

4FT / 8FT Linkable LED Linear Strip Light | Wattage & 5CCT Selectable | 120–347V

$85.00 CAD
$85.00 CAD
Sale Sold out
Shipping calculated at checkout.

Request WholeSale Price

Length

Choose the fixture length for your installation. Wattage and colour temperature are selectable on the fixture.

Length Selectable wattage Maximum light output
4FT 20 / 25 / 30 / 35 / 40W 5,600 lumens at 40W

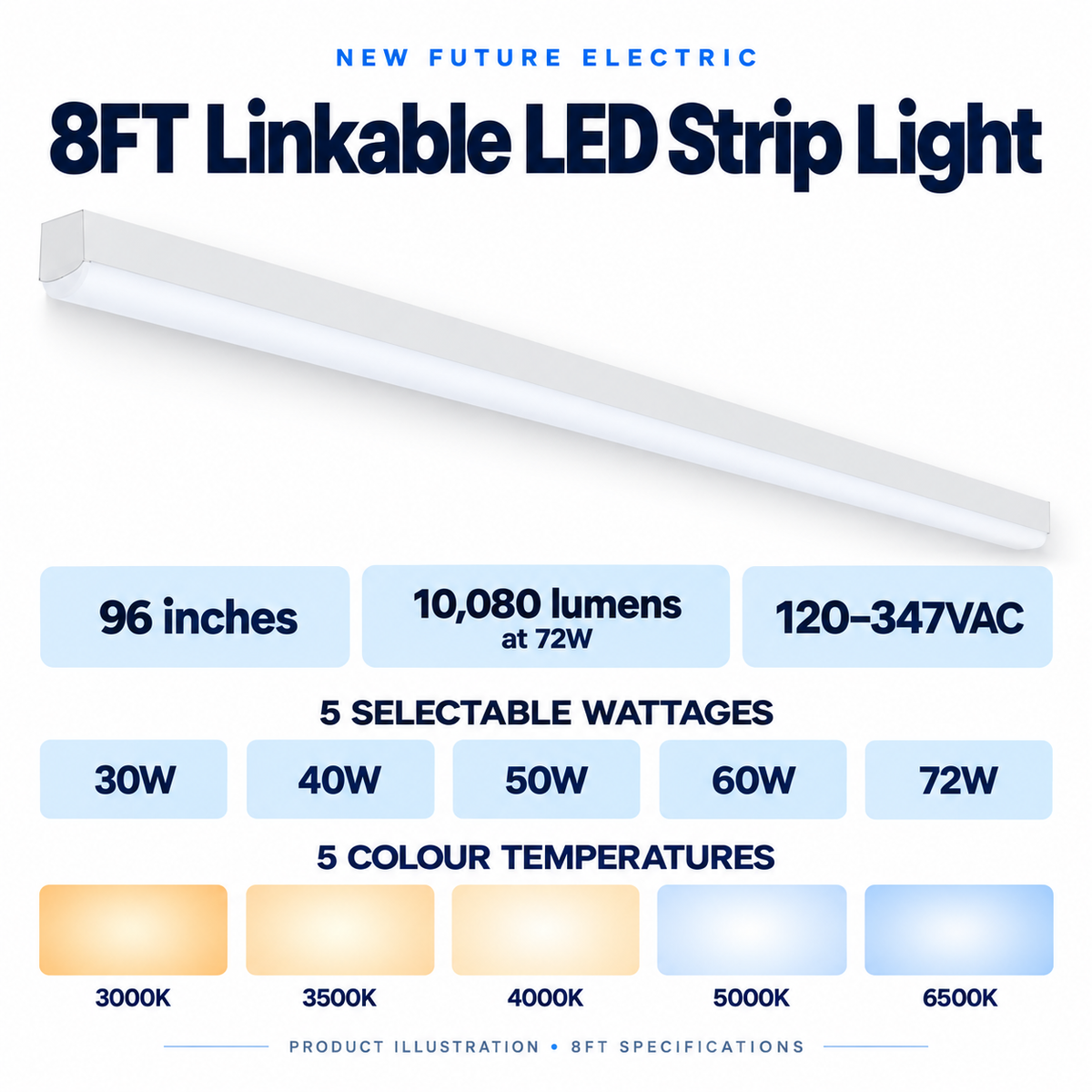

8FT (96 inches) 30 / 40 / 50 / 60 / 72W 10,080 lumens at 72W
  • 5 selectable colour temperatures: 3000K / 3500K / 4000K / 5000K / 6500K
  • Input voltage: 120–347VAC
  • High efficiency: Up to 140 lm/W
  • Linkable design: Compatible plug-and-play fixture connections. Verify linking accessories and loading limits.
  • Quick-open design: Push-button access for wiring and installation
  • 0–10V dimming: With compatible dimming controls
  • Optional microwave motion sensor: Sold separately
  • Isolated LED driver: Electrical separation between AC input and LED output

The gallery includes 4FT product photos and 8FT specification illustrations. The detail section below shows the 4FT model; use the table above and the graphics labelled 8FT for the 8FT specifications.

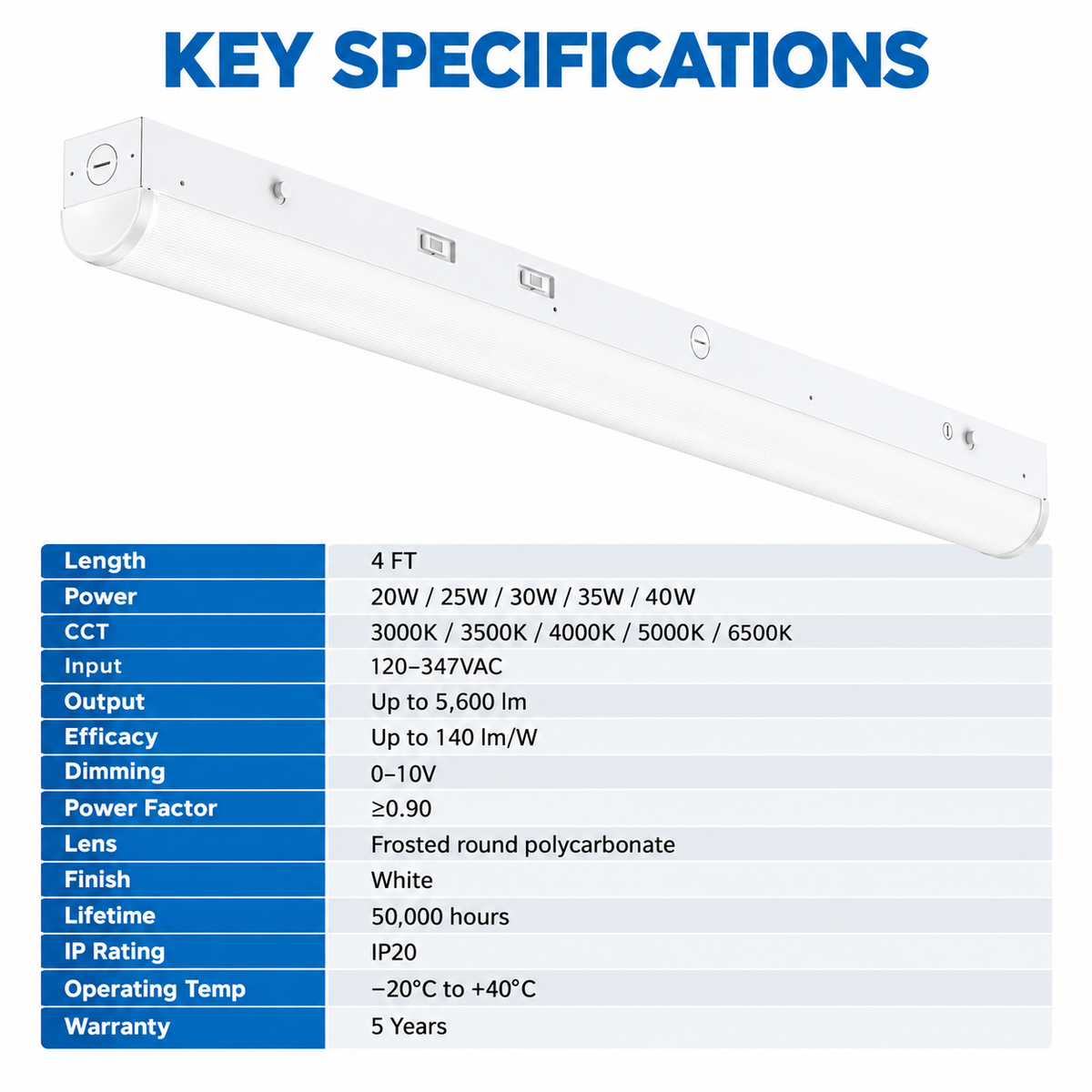

🌟 Core Specifications

  • Nominal length: 4 ft (48 in)
  • Selectable wattage: 20 / 25 / 30 / 35 / 40 W
  • Maximum output: 5,600 lm at 40W; up to 140 lm/W
  • Selectable CCT: 3000K / 3500K / 4000K / 5000K / 6500K
  • Input: 120–347VAC; PF ≥0.90
  • 0–10V dimming; isolated LED driver
  • Frosted round polycarbonate diffuser; white finish
  • IP20 indoor; −20°C to +40°C operating temperature
  • 50,000-hour rated life; 5-year warranty; DLC 6.0 Premium per supplied product specification

📦 What’s in the Box

  • 1 × 4FT linkable LED linear strip fixture

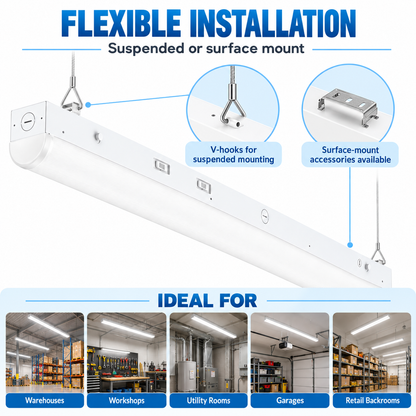

  • Standard V-hooks for suspended mounting (exact quantity to confirm)
  • Microwave motion sensor sold separately
  • Linking accessories and surface-mount hardware not confirmed as included
View full details

COMMERCIAL LINKABLE LED STRIP LIGHT

4FT versatile linear lighting

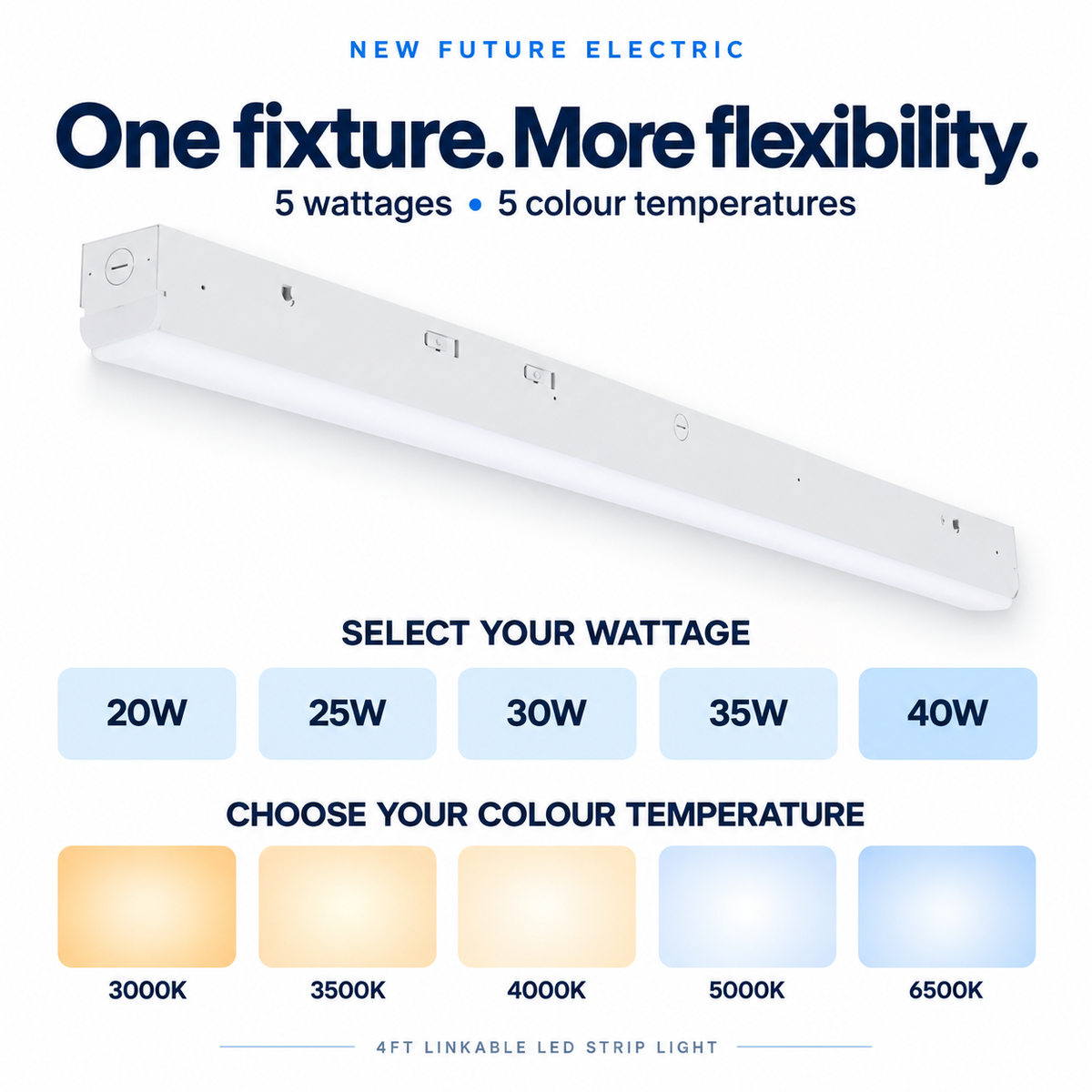

4FT linkable LED linear strip light - selectable wattage and CCT

SELECTABLE WATTAGE & CCT

Adjust brightness and colour

Selectable power 20 / 25 / 30 / 35 / 40 W; 3000/3500/4000/5000/6500K colour temperatures.

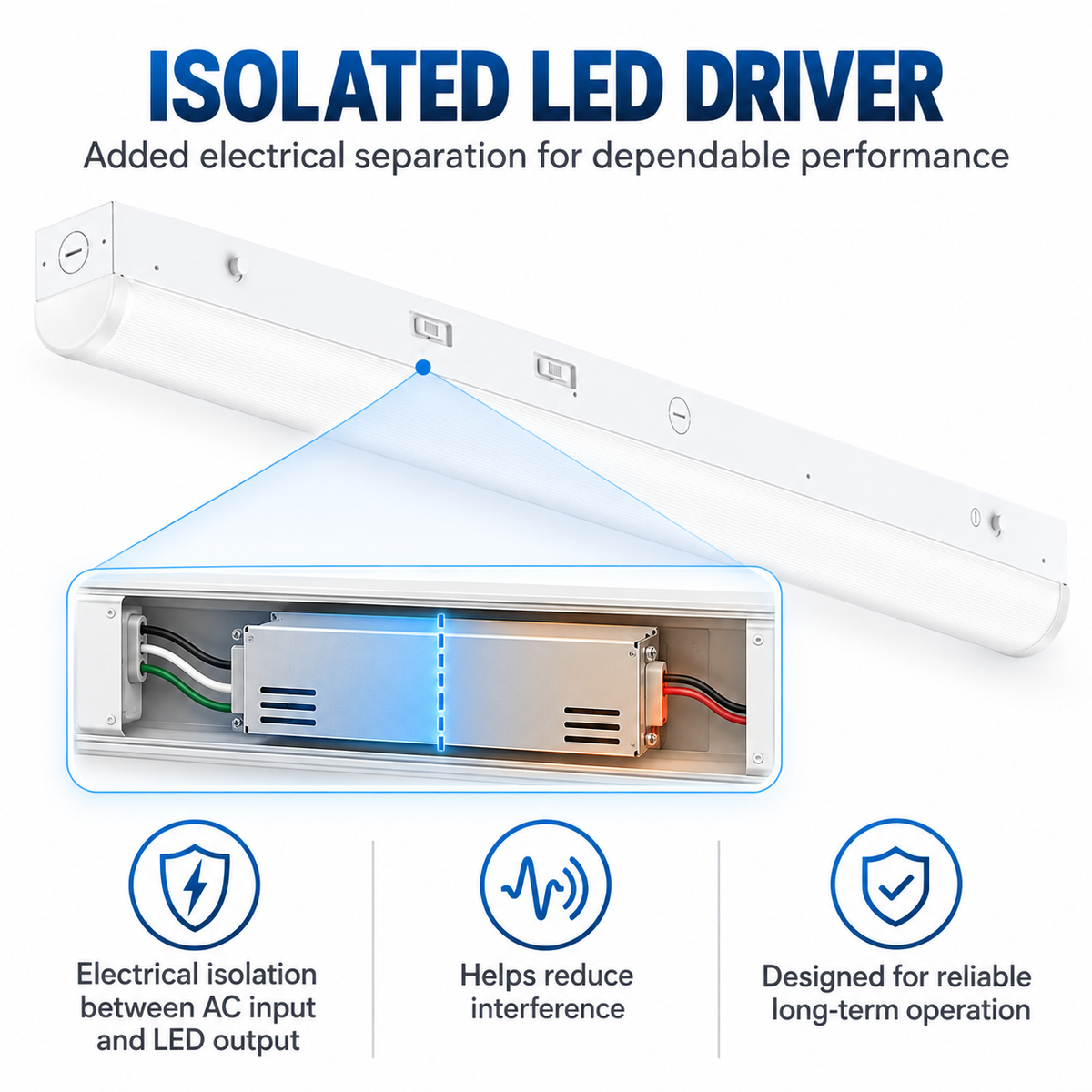

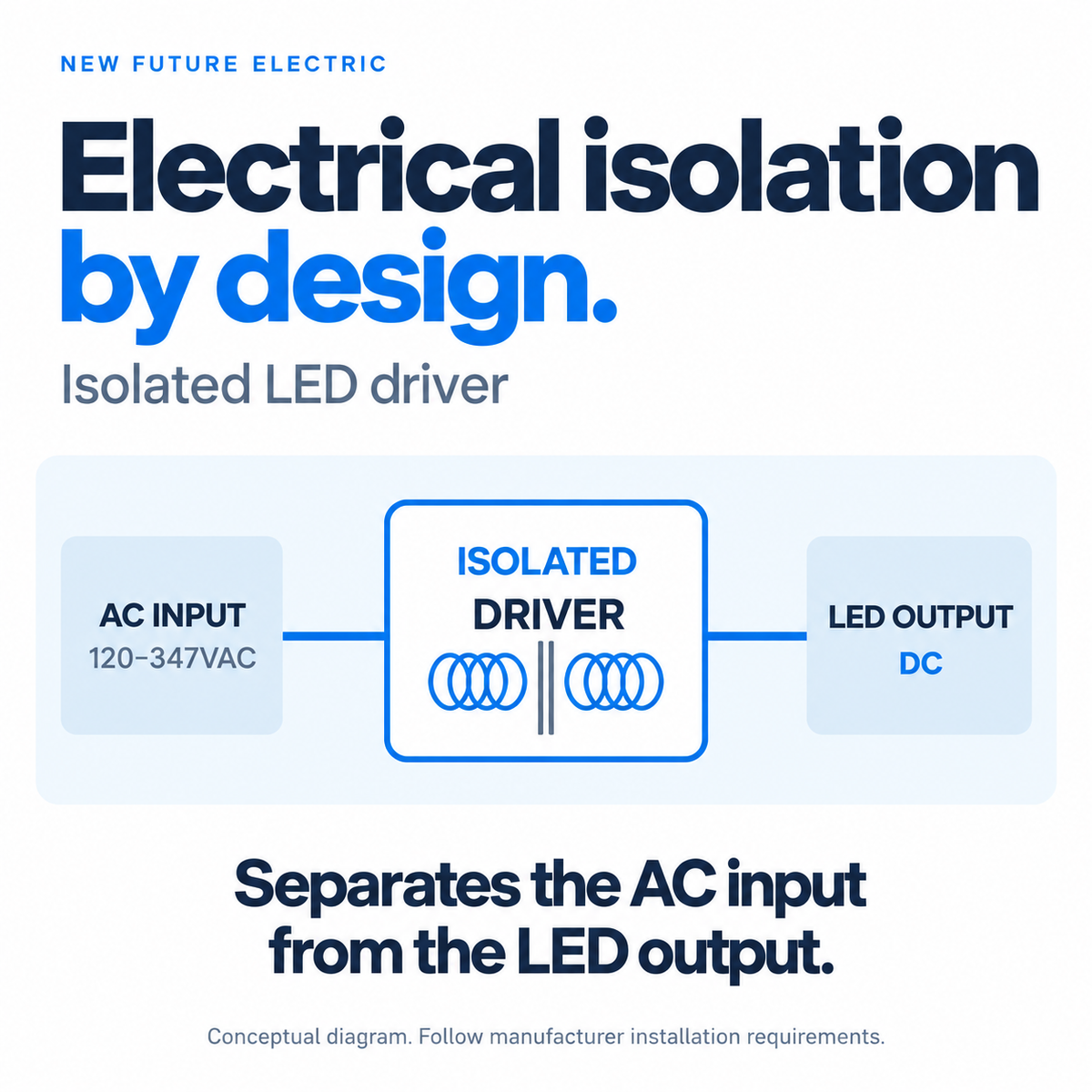

4FT linkable LED linear strip light - isolated LED driver

ISOLATED DRIVER

Electrical isolation by design

Isolated driver separates the AC input from the LED output. Internal-driver diagram is conceptual.

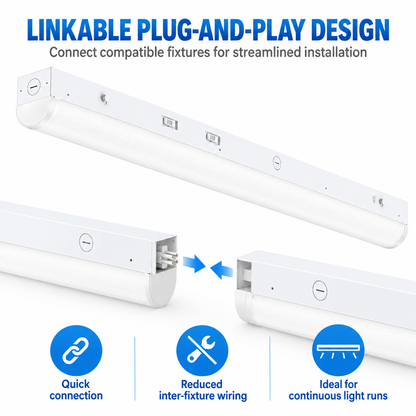

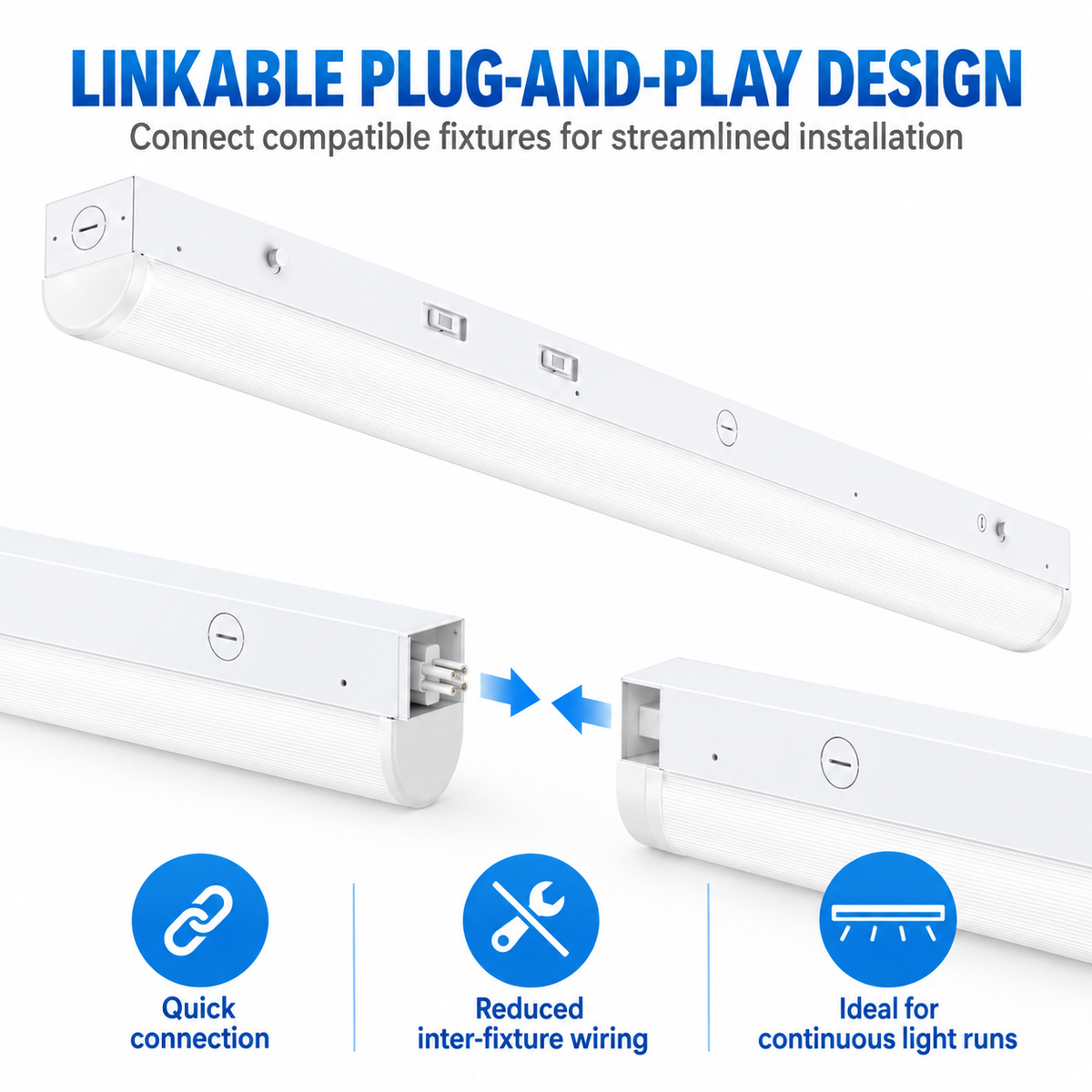

4FT linkable LED linear strip light - linking system

LINKABLE INSTALLATION

Designed for continuous light runs

Compatible link system supports plug-and-play fixture connections. Verify required linking accessories and loading limits.

Selectable 20 / 25 / 30 / 35 / 40 W power, 5CCT options, 120–347VAC, 0–10V dimming and an isolated LED driver.
